A class for the Serial Wombat SW8B or SW18AB chips which received IR remote signals. Currently only NEC protocol is supported. More...

#include <SerialWombatIRRx.h>

Inheritance diagram for SerialWombatIRRx:

[legend]

Collaboration diagram for SerialWombatIRRx:

[legend]

Public Types
enum	publicDataOutput { COMMAND = 0 , ADDRESS = 1 , DATACOUNT = 2 }

Public Member Functions
	SerialWombatIRRx (SerialWombatChip &serialWombatChip)
	Constructor for the SerialWombatIRRx class.

int16_t	begin (uint8_t pin, SerialWombatIRRx::publicDataOutput dataOutput=SerialWombatIRRx::publicDataOutput::DATACOUNT, uint8_t irMode=0, bool useRepeat=true, SerialWombatPinState_t activeState=SW_LOW, uint16_t publicDataTimeoutPeriod_mS=1000, uint16_t publicDataTimeoutValue=0xFFFF, bool useAddressFilter=false, uint16_t addressFilterValue=0x1234)
	Initalize the SerialWombatIRRx.

int	available ()
	Returns the number of bytes available in the SerialWombatIRRx queue.

int	read ()
	Reads a byte from the SerialWombatIRRx queue.

void	flush ()
	Discard all bytes from the SerialWombatIRRx queue.

int	peek ()
	Query the SerialWombatIRRx queue for the next avaialble byte, but don't remove it from the queue.

size_t	write (uint8_t data)
	Write a byte to the SerialWombatIRRx queue (Does Nothing)

size_t	write (const uint8_t *buffer, size_t size)
	Write bytes to the SerialWombatIRRx queue (Does nothing)

int	availableForWrite ()
	Number of bytes avaialble to write to SerialWombatIRRx queue. Returns 0.

size_t	readBytes (char *buffer, size_t length)
	Reads a specified number of bytes from the SerialWombatIRRx queue queue.

void	setTimeout (long timeout_mS)
	implemented to fulfill Stream requirement.

SerialWombatIRRx &	operator= (SerialWombatIRRx &irrx)
	used to allow reference copy. Not for user use.

uint16_t	readAddress ()
	Returns the address of the last received IR command.

uint16_t	readDataCount ()
	Returns the total number of queued commands (rolls over at 65535)

Public Member Functions inherited from SerialWombatPin
	SerialWombatPin (SerialWombatChip &serialWombatChip)
	Instantiates a Serial Wombat Pin.

	SerialWombatPin (SerialWombatChip &serialWombatChip, uint8_t pin)
	Instantiates a Serial Wombat Pin.

uint16_t	readPublicData ()
	Read the 16 Bit public data associated with this pin.

void	pinMode (uint8_t mode, bool pullDown=false, bool openDrain=false)
	Set pin to INPUT or OUTPUT, with options for pull Ups and open Drain settings.

void	digitalWrite (uint8_t val)
	Set output pin High or Low.

int	digitalRead ()
	Reads the state of the Pin.

uint16_t	writePublicData (uint16_t value)
	Write a 16 bit value to this pin.

uint8_t	pin ()
	Returns the current SW pin number. Used primarily for virtual calls by derived classes.

uint8_t	swPinModeNumber ()
	Returns the Mode number. Used primarily by derived classes to populate packet data.

int16_t	initPacketNoResponse (uint8_t packetNumber, uint8_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55, uint8_t param4=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0, uint16_t param1, uint8_t param2=0x55)

int16_t	disable ()
	Disables the pin mode (if applicable)

int16_t	enablePullup (bool enabled)
	Enables the weak pull up on a pin. Implemented on SW18AB and SW8B only.

int16_t	enablePulldown (bool enabled)
	Enables the weak pull down on a pin. Implemented on SW18AB and SW8B only.

int16_t	enableOpenDrain (bool enabled)
	Enables open drain mode on a pin. Implemented on SW18AB and SW8B only.

int16_t	forceDMA (bool enabled)
	Forces use of DMA instead of hardware timing resources on SW18AB.

void	setPinNumberForTesting (uint8_t pin)
	A function designed for testing only. May have unpredictable results if used in real time. Not intended for general use.

Protected Attributes
uint32_t	timeout = 1

Protected Attributes inherited from SerialWombatPin
uint8_t	_pin = 255

SerialWombatChip &	_sw

uint8_t	_pinMode = 0

Detailed Description

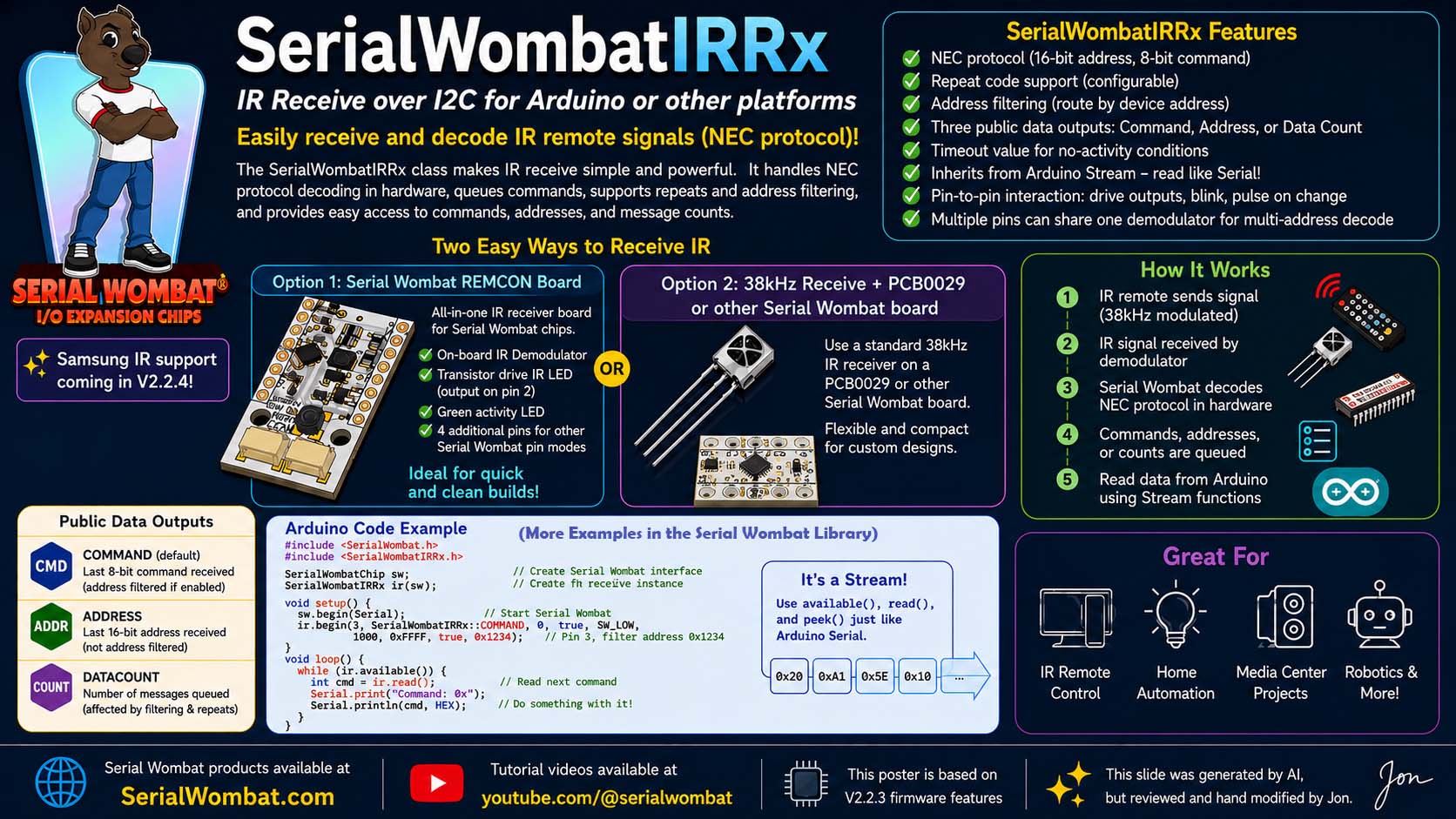

A class for the Serial Wombat SW8B or SW18AB chips which received IR remote signals. Currently only NEC protocol is supported.

This class supports IR Receive of NEC protocol. It assumes 16 bit addressing, and supports repeat codes.

The pin public data can represent the last received command, last received address, or number of messages received. This allows pin to pin interaction to either drive outputs (address or command) or drive the blink or pulse on change pin modes when the count changes. For commands the public data also allows a timeout value to set a default value if no input has been received in a given time.

This class inherits from the Arduino stream class, so incoming commands can be read as a stream.

The pin mode can receive all commands, or can filter for a specific device address. Feeding the same demodulator to multiple pins running this pin mode allows multiple addresses to be decoded into different streams.

A Tutorial video is avaialble:

COMING SOON

The class inherits from the Arduino Stream class, so queued button presses can be read like a Serial port.

Definition at line 57 of file SerialWombatIRRx.h.

Member Enumeration Documentation

◆ publicDataOutput

enum SerialWombatIRRx::publicDataOutput

Enumerator
COMMAND	The last 8 bit command received (address filtered if enabled)
ADDRESS	the last 16 bit address received. Not Address filtered
DATACOUNT	The number of data that have been queued (Affected by address filtering and repeat settings)

Definition at line 61 of file SerialWombatIRRx.h.

Constructor & Destructor Documentation

◆ SerialWombatIRRx()

SerialWombatIRRx::SerialWombatIRRx ( SerialWombatChip & serialWombatChip )

inline

Constructor for the SerialWombatIRRx class.

Parameters

serialWombatChip The Serial Wombat Chip on which the SerialWombatUART instance will run.

Definition at line 72 of file SerialWombatIRRx.h.

Member Function Documentation

◆ available()

int SerialWombatIRRx::available ( )

inline

Returns the number of bytes available in the SerialWombatIRRx queue.

Returns: The number of bytes available

Definition at line 135 of file SerialWombatIRRx.h.

◆ availableForWrite()

int SerialWombatIRRx::availableForWrite ( )

inline

Number of bytes avaialble to write to SerialWombatIRRx queue. Returns 0.

Returns: Zero. Writes are not suppored.

Definition at line 221 of file SerialWombatIRRx.h.

◆ begin()

int16_t SerialWombatIRRx::begin	(	uint8_t	pin,
		SerialWombatIRRx::publicDataOutput	dataOutput = SerialWombatIRRx::publicDataOutput::DATACOUNT,
		uint8_t	irMode = 0,
		bool	useRepeat = true,
		SerialWombatPinState_t	activeState = SW_LOW,
		uint16_t	publicDataTimeoutPeriod_mS = 1000,
		uint16_t	publicDataTimeoutValue = 0xFFFF,
		bool	useAddressFilter = false,
		uint16_t	addressFilterValue = 0x1234 )

inline

Initalize the SerialWombatIRRx.

Parameters

pin	The Serial Wombat pin number to use for the IR receiver. For the REMCON board this should be 3
dataOutput	The type of data to output (COMMAND, ADDRESS, or DATACOUNT)
irMode	0 for NEC protocol, other values reserved for future protocols
useRepeat	If true, queue value on repeat commands
activeState	The state of the pin which indicates an active IR signal (SW_LOW or SW_HIGH)
publicDataTimeoutPeriod_mS	The number of milliseconds to wait for the next byte to be received before timing out
publicDataTimeoutValue	The value to return when a timeout occurs
useAddressFilter	If true, only queue commands from the specified address
addressFilterValue	The address to filter on if useAddressFilter is true

Returns: 0 on success, negative value on error

Definition at line 88 of file SerialWombatIRRx.h.

◆ flush()

void SerialWombatIRRx::flush ( )

inline

Discard all bytes from the SerialWombatIRRx queue.

Definition at line 166 of file SerialWombatIRRx.h.

◆ operator=()

SerialWombatIRRx & SerialWombatIRRx::operator= ( SerialWombatIRRx & irrx )

inline

used to allow reference copy. Not for user use.

Definition at line 301 of file SerialWombatIRRx.h.

◆ peek()

int SerialWombatIRRx::peek ( )

inline

Query the SerialWombatIRRx queue for the next avaialble byte, but don't remove it from the queue.

Returns: A byte from 0-255, or -1 if no bytes were avaialble

Definition at line 174 of file SerialWombatIRRx.h.

◆ read()

int SerialWombatIRRx::read ( )

inline

Reads a byte from the SerialWombatIRRx queue.

Returns: A byte from 0-255, or -1 if no bytes were avaialble

Definition at line 147 of file SerialWombatIRRx.h.

◆ readAddress()

uint16_t SerialWombatIRRx::readAddress ( )

inline

Returns the address of the last received IR command.

Returns: The address as a uint16_t

Definition at line 310 of file SerialWombatIRRx.h.

◆ readBytes()

size_t SerialWombatIRRx::readBytes	(	char *	buffer,
		size_t	length )

inline

Reads a specified number of bytes from the SerialWombatIRRx queue queue.

Parameters

buffer	An array into which to put received bytes
length	The maximum number of bytes to be received

Returns: the number of bytes written to buffer

This function will read bytes from the SerialWombatIRRx queue into buffer. If 'length' characters are not available to read then the value returned will be less than length.

Definition at line 236 of file SerialWombatIRRx.h.

◆ readDataCount()

uint16_t SerialWombatIRRx::readDataCount ( )

inline

Returns the total number of queued commands (rolls over at 65535)

Definition at line 324 of file SerialWombatIRRx.h.

◆ setTimeout()

void SerialWombatIRRx::setTimeout ( long timeout_mS )

inline

implemented to fulfill Stream requirement.

Definition at line 285 of file SerialWombatIRRx.h.

◆ write() [1/2]

size_t SerialWombatIRRx::write	(	const uint8_t *	buffer,
		size_t	size )

inline

Write bytes to the SerialWombatIRRx queue (Does nothing)

Parameters

buffer	An array of uint8_t bytes to send
size	the number of bytes to send

Returns: the number of bytes sent

This function exists to fully implement the Stream class. It throws away the bytes.

Definition at line 211 of file SerialWombatIRRx.h.

◆ write() [2/2]

size_t SerialWombatIRRx::write ( uint8_t data )

inline

Write a byte to the SerialWombatIRRx queue (Does Nothing)

Parameters

data	Byte to write

Returns: Number of bytes written

This function exists to fully implement the Stream class. It throws away the byte.

Definition at line 196 of file SerialWombatIRRx.h.

Member Data Documentation

◆ timeout

uint32_t SerialWombatIRRx::timeout = 1

protected

Definition at line 335 of file SerialWombatIRRx.h.
