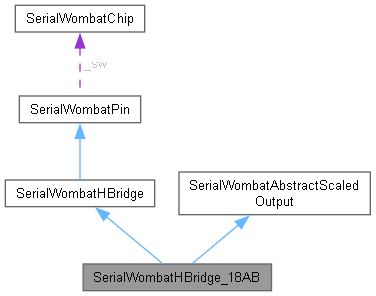

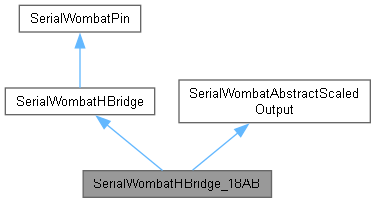

Extends the SerialWombatHBridge class with SW18AB specific functionality, including SerialWombatAbstractScaledOutput. More...
#include <SerialWombatHBridge.h>
Public Member Functions | |
| SerialWombatHBridge_18AB (SerialWombatChip &serialWombat) | |
| uint8_t | pin () |
| fulfills a virtual function requirement of SerialWombatAbstractScaledOutput More... | |
| uint8_t | swPinModeNumber () |
| fulfills a virtual function requirement of SerialWombatAbstractScaledOutput More... | |
 Public Member Functions inherited from SerialWombatHBridge | |
| SerialWombatHBridge (SerialWombatChip &serialWombat) | |
| Constructor for SerialWombatHBridge class. More... | |
| int16_t | begin (uint8_t pin, uint8_t secondPin, uint16_t PWMPeriod_uS, SerialWombatHBridgeDriverChip chip) |
| Initialize a pin that has been declared as HBridge. More... | |
| Public Member Functions inherited from SerialWombatPin | |
| SerialWombatPin (SerialWombatChip &serialWombatChip) | |
| Instantiates a Serial Wombat Pin. More... | |
| SerialWombatPin (SerialWombatChip &serialWombatChip, uint8_t pin) | |
| Instantiates a Serial Wombat Pin. More... | |
| uint16_t | readPublicData () |
| Read the 16 Bit public data associated with this pin. More... | |
| void | pinMode (uint8_t mode, bool pullDown=false, bool openDrain=false) |
| Set pin to INPUT or OUTPUT, with options for pull Ups and open Drain settings. More... | |
| void | digitalWrite (uint8_t val) |
| Set output pin High or Low. More... | |
| int | digitalRead () |
| Reads the state of the Pin. More... | |
| uint16_t | writePublicData (uint16_t value) |
| Write a 16 bit value to this pin. More... | |
| uint8_t | pin () |
| Returns the current SW pin number. Used primarily for virtual calls by derived classes. More... | |
| uint8_t | swPinModeNumber () |
| Returns the Mode number. Used primarily by derived classes to populate packet data. More... | |
| int16_t | initPacketNoResponse (uint8_t packetNumber, uint8_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55, uint8_t param4=0x55) |
| int16_t | initPacketNoResponse (uint8_t packetNumber, uint16_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55) |
| int16_t | initPacketNoResponse (uint8_t packetNumber, uint16_t param0, uint16_t param1, uint8_t param2=0x55) |
| int16_t | disable () |
| Disables the pin mode (if applicable) More... | |
| Public Member Functions inherited from SerialWombatAbstractScaledOutput | |
| SerialWombatAbstractScaledOutput (SerialWombatChip &sw) | |
| Constructor for the SerialWombatAbstractScaledOutput Class. More... | |
| int16_t | writeTimeout (uint16_t timeout_mS, uint16_t timeoutOutputValue) |
| Enable a timeout value which will cause the output to go to a default value if not updated. More... | |
| int16_t | writeScalingEnabled (bool enabled, uint8_t sourcePin) |
| Enable scaling and set which pin or public data is used as the input source. More... | |
| int16_t | writeInputScaling (uint16_t inputMin, uint16_t inputMax) |
| Scale incoming values to a range of 0 to 65535. More... | |
| int16_t | writeOutputScaling (uint16_t outputMin, uint16_t outputMax) |
| Reduces the output range from 0 to 65535 to user specified range. More... | |
| int16_t | writeScalingInvertedInput (bool inverted) |
| if enabled subtract the input value from 65535 before doing any other processing. More... | |
| int16_t | writeScalingTargetValue (uint16_t target) |
| The target input value for PID control. More... | |
| int16_t | writeRateControl (Period samplePeriod, uint16_t maximumChangecounts) |
| int16_t | write1stOrderFiltering (Period sampleRate, uint16_t filterConstant) |
| int16_t | writeHysteresis (uint16_t lowLimit, uint16_t lowOutputValue, uint16_t highLimit, uint16_t highOutputValue, uint16_t initialOutputValue) |
| Controls the output based on hystersis control. More... | |
| int16_t | writePID (uint16_t kp, uint16_t ki, uint16_t kd, uint16_t target, Period samplePeriod) |
| Configure the scaled output block into PID control mode. More... | |
| uint16_t | readLastOutputValue () |
| Request Last Output Value. More... | |
| int16_t | writeScalingTargetValueResetIntegrator (uint16_t target) |
| int32_t | PIDGetLastError () |
| int32_t | PIDGetLastIntegrator () |
| int32_t | PIDGetLastIntegratorEffort () |
| int32_t | PIDGetLastProportionalEffort () |
| int32_t | PIDGetLastDerivativeEffort () |
| int32_t | PIDGetLastEffort () |
| uint16_t | ReadLastTarget () |
| int16_t | Enable2DLookupOutputScaling (uint16_t IndexInUserMemory) |
| Set Up 2D Lookup Output Scaling. More... | |
Additional Inherited Members | |
| Public Types inherited from SerialWombatAbstractScaledOutput | |
| enum | Period { PERIOD_1mS = 0, PERIOD_2mS = 1, PERIOD_4mS = 2, PERIOD_8mS = 3, PERIOD_16mS = 4, PERIOD_32mS = 5, PERIOD_64mS = 6, PERIOD_128mS = 7, PERIOD_256mS = 8, PERIOD_512mS = 9, PERIOD_1024mS = 10 } |
| Protected Attributes inherited from SerialWombatPin | |
| uint8_t | _pin = 255 |
| SerialWombatChip & | _sw |
| uint8_t | _pinMode = 0 |
Extends the SerialWombatHBridge class with SW18AB specific functionality, including SerialWombatAbstractScaledOutput.
|
inline |
|
inlinevirtual |
fulfills a virtual function requirement of SerialWombatAbstractScaledOutput
Implements SerialWombatAbstractScaledOutput.
|
inlinevirtual |
fulfills a virtual function requirement of SerialWombatAbstractScaledOutput
Implements SerialWombatAbstractScaledOutput.
