A Class which uses one or two Serial Wombat 18AB pins to measure distance using an Ultrasonic distance sensor.
More...

#include <SerialWombatUltrasonicDistanceSensor.h>

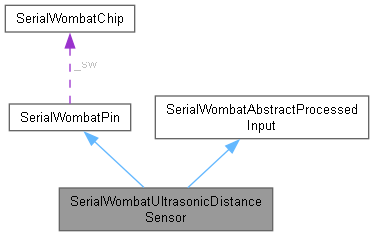

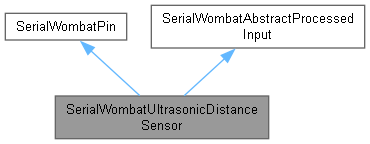

Inheritance diagram for SerialWombatUltrasonicDistanceSensor:

Public Types
enum	driver { HC_SR04 = 0 }

Public Types inherited from SerialWombatAbstractProcessedInput
enum	Period { PERIOD_1mS = 0, PERIOD_2mS = 1, PERIOD_4mS = 2, PERIOD_8mS = 3, PERIOD_16mS = 4, PERIOD_32mS = 5, PERIOD_64mS = 6, PERIOD_128mS = 7, PERIOD_256mS = 8, PERIOD_512mS = 9, PERIOD_1024mS = 10 }

enum	OutputValue { RAW = 0, FIRST_ORDER_FILTERED = 1, AVERAGE = 2 }

enum	Transform { NONE = 0, SCALE_RANGE = 1, LINEAR_MXB = 2 }

Public Member Functions
	SerialWombatUltrasonicDistanceSensor (SerialWombatChip &serialWombat)
	Class constructor for SerialWombatPulseTimer. More...

int16_t	begin (uint8_t echoPin, driver driver, uint8_t triggerPin, bool autoTrigger=true, bool pullUp=false)
	Initialization routine for SerialWombatUltrasonicDistanceSensor. More...

uint16_t	readPulseCount ()
	get the number of pulses that have been sent. More...

int16_t	manualTrigger ()
	Manually trigger a distance reading. More...

int16_t	configureServoSweep (uint8_t servoPin, uint16_t memoryIndex, uint16_t servoPositions_, uint16_t servoIncrement, bool reverse=false, uint16_t servoMoveDelay=100, uint16_t servoReturnDelay=1000)
	Configure a Servo sweep of Ultrasonic Distance Sensor. More...

int16_t	enableServoSweep (bool enable=true)

uint16_t	readServoSweepEntry (uint16_t servoSweepEntry)

int16_t	readServoSweepEntries (uint16_t *entries, uint16_t count)

uint8_t	pin ()
	Facilitates Inheritance. More...

uint8_t	swPinModeNumber ()
	Facilitates Inheritance. More...

Public Member Functions inherited from SerialWombatPin
	SerialWombatPin (SerialWombatChip &serialWombatChip)
	Instantiates a Serial Wombat Pin. More...

	SerialWombatPin (SerialWombatChip &serialWombatChip, uint8_t pin)
	Instantiates a Serial Wombat Pin. More...

uint16_t	readPublicData ()
	Read the 16 Bit public data associated with this pin. More...

void	pinMode (uint8_t mode, bool pullDown=false, bool openDrain=false)
	Set pin to INPUT or OUTPUT, with options for pull Ups and open Drain settings. More...

void	digitalWrite (uint8_t val)
	Set output pin High or Low. More...

int	digitalRead ()
	Reads the state of the Pin. More...

uint16_t	writePublicData (uint16_t value)
	Write a 16 bit value to this pin. More...

uint8_t	pin ()
	Returns the current SW pin number. Used primarily for virtual calls by derived classes. More...

uint8_t	swPinModeNumber ()
	Returns the Mode number. Used primarily by derived classes to populate packet data. More...

int16_t	initPacketNoResponse (uint8_t packetNumber, uint8_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55, uint8_t param4=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0, uint16_t param1, uint8_t param2=0x55)

int16_t	disable ()
	Disables the pin mode (if applicable) More...

Public Member Functions inherited from SerialWombatAbstractProcessedInput
	SerialWombatAbstractProcessedInput (SerialWombatChip &sw)
	Constructor for the SerialWombatAbstractScaledOutput Class. More...

int16_t	writeInverted (bool inverted)
	if enabled subtract the input value from 65535 before doing any other processing. More...

int16_t	writeFirstOrderFilteringConstant (uint16_t constant)
	Set a first order filtering constant to be applied to the signal Higher is heavier filtering. More...

int16_t	writeAveragingNumberOfSamples (uint16_t numberOfSamples)
	Set a number of samples to average for each update of the downstream signal. More...

int16_t	writeExcludeBelowAbove (uint16_t low, uint16_t high)
	Sets input value ranges which are discarded rather than processed. More...

int16_t	configureQueue (SerialWombatQueue *queue, Period period, bool queueHighByte=true, bool queueLowByte=true)
	Sets up the queueing feature for this pin mode. Queue must have been initialized prior to this queue. More...

int16_t	configureOutputValue (OutputValue outputValue)
	Configures whether the pin's public data value is averaged, filtered, or neither. More...

int16_t	writeTransformScaleRange (uint16_t min, uint16_t max)
	Scale incoming values to a range of 0 to 65535. More...

int16_t	writeTransformLinearMXB (int32_t m, int32_t b)
	Scale incoming values based on an mx+b linear equation. More...

int16_t	configureIntegrator (uint16_t negativeMaxIndex, uint16_t negativeMidIndex, uint16_t negativeDeadZone, uint16_t positiveDeadZone, uint16_t positiveMidIndex, uint16_t positiveMaxIndex, uint16_t midIncrement, uint16_t maxIncrement, uint16_t initialValue, uint8_t updateFrequencyMask=0)
	Sort incoming data into one of 5 ranges, and integrate based on linear interpolation in those ranges. More...

int16_t	writeProcessedInputEnable (bool enabled)
	Enables or disables all input processing functions If disabled, the raw input value is placed directly in the pin's 16 bit public data buffer. More...

uint16_t	readMinimum (bool resetAfterRead=false)
	Retreive the maximum public data output value since the last call with reset= true. More...

uint16_t	readMaximum (bool resetAfterRead=false)
	Retreive the minimum public data output value since the last call with reset= true. More...

uint16_t	readAverage ()
	Retreive the last completed averaged value. More...

uint16_t	readFiltered ()
	Retreive the filtered value. More...

Public Attributes
uint16_t	servoMemoryIndex = 0

uint16_t	servoPositions = 1

Additional Inherited Members
Protected Attributes inherited from SerialWombatPin
uint8_t	_pin = 255

SerialWombatChip &	_sw

uint8_t	_pinMode = 0

Detailed Description

A Class which uses one or two Serial Wombat 18AB pins to measure distance using an Ultrasonic distance sensor.

A video Tutorial on this pin mode is available:

//TODO

TODO https://youtu.be/

Documentation for the SerialWombatUltrasonicDistanceSensor class is available at: https://broadwellconsultinginc.github.io/SerialWombatArdLib/class_serial_wombat_ultrasonic_distance_sensor.html

Member Enumeration Documentation

◆ driver

enum SerialWombatUltrasonicDistanceSensor::driver

Enumerator
HC_SR04	Standard buffered mode. Colors are uploaded by the host.

Constructor & Destructor Documentation

◆ SerialWombatUltrasonicDistanceSensor()

SerialWombatUltrasonicDistanceSensor::SerialWombatUltrasonicDistanceSensor ( SerialWombatChip & serialWombat )

inline

Class constructor for SerialWombatPulseTimer.

Parameters

serialWombat The Serial Wombat chip on which the SerialWombatPulseTimer pinmode will be run

Member Function Documentation

◆ begin()

int16_t SerialWombatUltrasonicDistanceSensor::begin	(	uint8_t	echoPin,
		driver	driver,
		uint8_t	triggerPin,
		bool	autoTrigger = `true`,
		bool	pullUp = `false`
	)

inline

Initialization routine for SerialWombatUltrasonicDistanceSensor.

Parameters

echoPin	Pin used to time input pulses. For 5V sensors, 5V tolerant pins 9,10,11,12, 14 and 15 are good choices
driver	Chip used for distance measurement. Currently only HC_SR04 is supported.
triggerPin	Pin used for triggering the sensor. If same as echo pin (e.g. 3 pin sensors) set equal to echoPin

Returns: 0 or higher if successful, negative error code if not successful.

◆ configureServoSweep()

int16_t SerialWombatUltrasonicDistanceSensor::configureServoSweep	(	uint8_t	servoPin,
		uint16_t	memoryIndex,
		uint16_t	servoPositions_,
		uint16_t	servoIncrement,
		bool	reverse = `false`,
		uint16_t	servoMoveDelay = `100`,
		uint16_t	servoReturnDelay = `1000`
	)

inline

Configure a Servo sweep of Ultrasonic Distance Sensor.

◆ enableServoSweep()

int16_t SerialWombatUltrasonicDistanceSensor::enableServoSweep ( bool enable = true )

inline

◆ manualTrigger()

int16_t SerialWombatUltrasonicDistanceSensor::manualTrigger ( )

inline

Manually trigger a distance reading.

Use this interface to trigger a reading if begin was called with autoTrigger = false

Returns: 0 or higher if successful, negative error code if not successful.

◆ pin()

uint8_t SerialWombatUltrasonicDistanceSensor::pin ( )

inlinevirtual

Facilitates Inheritance.

Implements SerialWombatAbstractProcessedInput.

◆ readPulseCount()

uint16_t SerialWombatUltrasonicDistanceSensor::readPulseCount ( )

inline

get the number of pulses that have been sent.

Returns: The number of pulses that have been sent. Rolls over at 65536

◆ readServoSweepEntries()

int16_t SerialWombatUltrasonicDistanceSensor::readServoSweepEntries	(	uint16_t *	entries,
		uint16_t	count
	)

inline

◆ readServoSweepEntry()

uint16_t SerialWombatUltrasonicDistanceSensor::readServoSweepEntry ( uint16_t servoSweepEntry )

inline

◆ swPinModeNumber()

uint8_t SerialWombatUltrasonicDistanceSensor::swPinModeNumber ( )

inlinevirtual

Facilitates Inheritance.

Implements SerialWombatAbstractProcessedInput.

Member Data Documentation

◆ servoMemoryIndex

uint16_t SerialWombatUltrasonicDistanceSensor::servoMemoryIndex = 0

◆ servoPositions

uint16_t SerialWombatUltrasonicDistanceSensor::servoPositions = 1
