extends the SerialWombatPulseTimer class with SW18AB specific functionality / This class adds functionality that is specific to the SW18AB firmware in addition to generic SerialWombatPulseTimer functionality avaialble on all Serial Wombat chips More...

#include <SerialWombatPulseTimer.h>

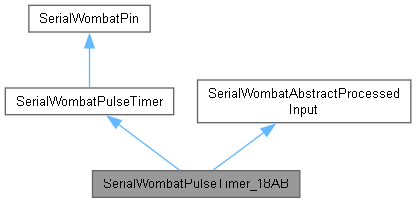

Inheritance diagram for SerialWombatPulseTimer_18AB:

Public Types
enum	publicDataOutput { HIGH_TIME = 0, LOW_TIME = 1, PULSE_COUNT = 2, PERIOD_ON_LTH_TRANSITION = 3, PERIOD_ON_HTL_TRANSITION = 4, FREQUENCY_ON_LTH_TRANSITION = 5, FREQUENCY_ON_HTL_TRANSITION = 6, DUTYCYCLE_ON_LTH_TRANSITION = 7, DUTYCYCLE_ON_HTL_TRANSITION = 8 }

Public Types inherited from SerialWombatAbstractProcessedInput
enum	Period { PERIOD_1mS = 0, PERIOD_2mS = 1, PERIOD_4mS = 2, PERIOD_8mS = 3, PERIOD_16mS = 4, PERIOD_32mS = 5, PERIOD_64mS = 6, PERIOD_128mS = 7, PERIOD_256mS = 8, PERIOD_512mS = 9, PERIOD_1024mS = 10 }

enum	OutputValue { RAW = 0, FIRST_ORDER_FILTERED = 1, AVERAGE = 2 }

enum	Transform { NONE = 0, SCALE_RANGE = 1, LINEAR_MXB = 2 }

Public Member Functions
	SerialWombatPulseTimer_18AB (SerialWombatChip &serialWombat)
	constructor for SerialWombatPulseTimer_18AB More...

int16_t	configurePublicDataOutput (SerialWombatPulseTimer_18AB::publicDataOutput publicDataOutput)

uint8_t	pin ()
	Facilitates multi-inheritance. More...

uint8_t	swPinModeNumber ()
	Facilitates multi-inheritance. More...

Public Member Functions inherited from SerialWombatPulseTimer
	SerialWombatPulseTimer (SerialWombatChip &serialWombat)
	Class constructor for SerialWombatPulseTimer. More...

int16_t	begin (uint8_t pin, SerialWombatPulseTimerUnits units=SW_PULSETIMER_uS, bool pullUpEnabled=false)
	Initialization routine for SerialWombatPulseTimer. More...

void	refresh ()
	Retreive the latest values for HighCounts, LowCounts, Pulses, and MeasurementOverflowOccured. More...

void	refreshHighCountsLowCounts ()
	Retreive the High and Low counts from the Serial Wombat chip in a single transaction. More...

void	refreshHighCountsPulses ()

uint16_t	readHighCounts ()

uint16_t	readLowCounts ()

uint16_t	readPulses ()

Public Member Functions inherited from SerialWombatPin
	SerialWombatPin (SerialWombatChip &serialWombatChip)
	Instantiates a Serial Wombat Pin. More...

	SerialWombatPin (SerialWombatChip &serialWombatChip, uint8_t pin)
	Instantiates a Serial Wombat Pin. More...

uint16_t	readPublicData ()
	Read the 16 Bit public data associated with this pin. More...

void	pinMode (uint8_t mode, bool pullDown=false, bool openDrain=false)
	Set pin to INPUT or OUTPUT, with options for pull Ups and open Drain settings. More...

void	digitalWrite (uint8_t val)
	Set output pin High or Low. More...

int	digitalRead ()
	Reads the state of the Pin. More...

uint16_t	writePublicData (uint16_t value)
	Write a 16 bit value to this pin. More...

uint8_t	pin ()
	Returns the current SW pin number. Used primarily for virtual calls by derived classes. More...

uint8_t	swPinModeNumber ()
	Returns the Mode number. Used primarily by derived classes to populate packet data. More...

int16_t	initPacketNoResponse (uint8_t packetNumber, uint8_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55, uint8_t param4=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0=0x55, uint8_t param1=0x55, uint8_t param2=0x55, uint8_t param3=0x55)

int16_t	initPacketNoResponse (uint8_t packetNumber, uint16_t param0, uint16_t param1, uint8_t param2=0x55)

int16_t	disable ()
	Disables the pin mode (if applicable) More...

Public Member Functions inherited from SerialWombatAbstractProcessedInput
	SerialWombatAbstractProcessedInput (SerialWombatChip &sw)
	Constructor for the SerialWombatAbstractScaledOutput Class. More...

int16_t	writeInverted (bool inverted)
	if enabled subtract the input value from 65535 before doing any other processing. More...

int16_t	writeFirstOrderFilteringConstant (uint16_t constant)
	Set a first order filtering constant to be applied to the signal Higher is heavier filtering. More...

int16_t	writeAveragingNumberOfSamples (uint16_t numberOfSamples)
	Set a number of samples to average for each update of the downstream signal. More...

int16_t	writeExcludeBelowAbove (uint16_t low, uint16_t high)
	Sets input value ranges which are discarded rather than processed. More...

int16_t	configureQueue (SerialWombatQueue *queue, Period period, bool queueHighByte=true, bool queueLowByte=true)
	Sets up the queueing feature for this pin mode. Queue must have been initialized prior to this queue. More...

int16_t	configureOutputValue (OutputValue outputValue)
	Configures whether the pin's public data value is averaged, filtered, or neither. More...

int16_t	writeTransformScaleRange (uint16_t min, uint16_t max)
	Scale incoming values to a range of 0 to 65535. More...

int16_t	writeTransformLinearMXB (int32_t m, int32_t b)
	Scale incoming values based on an mx+b linear equation. More...

int16_t	configureIntegrator (uint16_t negativeMaxIndex, uint16_t negativeMidIndex, uint16_t negativeDeadZone, uint16_t positiveDeadZone, uint16_t positiveMidIndex, uint16_t positiveMaxIndex, uint16_t midIncrement, uint16_t maxIncrement, uint16_t initialValue, uint8_t updateFrequencyMask=0)
	Sort incoming data into one of 5 ranges, and integrate based on linear interpolation in those ranges. More...

int16_t	writeProcessedInputEnable (bool enabled)
	Enables or disables all input processing functions If disabled, the raw input value is placed directly in the pin's 16 bit public data buffer. More...

uint16_t	readMinimum (bool resetAfterRead=false)
	Retreive the maximum public data output value since the last call with reset= true. More...

uint16_t	readMaximum (bool resetAfterRead=false)
	Retreive the minimum public data output value since the last call with reset= true. More...

uint16_t	readAverage ()
	Retreive the last completed averaged value. More...

uint16_t	readFiltered ()
	Retreive the filtered value. More...

Additional Inherited Members
Public Attributes inherited from SerialWombatPulseTimer
uint16_t	HighCounts = 0

uint16_t	LowCounts = 0

uint16_t	Pulses = 0

bool	MeasurementOverflowOccurred = false

Protected Attributes inherited from SerialWombatPin
uint8_t	_pin = 255

SerialWombatChip &	_sw

uint8_t	_pinMode = 0

Detailed Description

extends the SerialWombatPulseTimer class with SW18AB specific functionality / This class adds functionality that is specific to the SW18AB firmware in addition to generic SerialWombatPulseTimer functionality avaialble on all Serial Wombat chips

Member Enumeration Documentation

◆ publicDataOutput

enum SerialWombatPulseTimer_18AB::publicDataOutput

Enumerator
HIGH_TIME	The pulse high time in uS. Updated on each high to low transition.
LOW_TIME	the pulse low time in uS. Update on each low to high transition.
PULSE_COUNT	The number of pulses that have occured since initialization. Updated on each high to low transition.
PERIOD_ON_LTH_TRANSITION	The period of the pulse in uS, based on the previous high and low times, updated on low to high transition.
PERIOD_ON_HTL_TRANSITION	The period of the pulse in uS, based on the previous high and low times, updated on high to low transition.
FREQUENCY_ON_LTH_TRANSITION	The frequency of the pulse in Hz, based on the previous high and low times, updated on low to high transition.
FREQUENCY_ON_HTL_TRANSITION	The frequency of the pulse in Hz, based on the previous high and low times, updated on high to low transition.
DUTYCYCLE_ON_LTH_TRANSITION	Duty cycle of the pulse as a ratio from 0 to 65535, updated on low to high transition.
DUTYCYCLE_ON_HTL_TRANSITION	Duty cycle of the pulse as a ratio from 0 to 65535, updated on high to low transition.

Constructor & Destructor Documentation

◆ SerialWombatPulseTimer_18AB()

SerialWombatPulseTimer_18AB::SerialWombatPulseTimer_18AB ( SerialWombatChip & serialWombat )

inline

constructor for SerialWombatPulseTimer_18AB

Parameters

serialWombat reference to the SerialWombat chip on which the SerialWombatPulseTimer_18AB will run

Member Function Documentation

◆ configurePublicDataOutput()

int16_t SerialWombatPulseTimer_18AB::configurePublicDataOutput ( SerialWombatPulseTimer_18AB::publicDataOutput publicDataOutput )

inline

◆ pin()

uint8_t SerialWombatPulseTimer_18AB::pin ( )

inlinevirtual

Facilitates multi-inheritance.

Implements SerialWombatAbstractProcessedInput.

◆ swPinModeNumber()

uint8_t SerialWombatPulseTimer_18AB::swPinModeNumber ( )
